The "CERCIS" Advantage
The CERCIS tube is manufactured by the TH Solar Company who is one of the largest solar tube manufacturers in the world for many decades. The CERCIS tube is a technologically advanced collector that uses a proprietary process for sputtering an aluminum, nitrogen, and nickel selective coating to 360° of the inner tube surface. The selective coating allows the use of interference effect which results in the CERCIS’s ability to surpass other tube’s energy collection performance in the global marketplace. Constructed of high strength borosilicate glass, the collector “quasi tracks” the sun’s path throughout the day providing superior performance over flat plate collectors on a yearly basis. A seamlessly sealed vacuum is maintained between the inner and outer tube which gives the ability to significantly collect more energy during cloudy conditions and especially during the cold Canadian winter months because of the evacuated tube’s extremely low heat loss characteristics. The addition of a full length diffuse flat plate reflector further enhances the energy collection performance by up to an additional 5%. The benefits of evacuated tube technology make them superior to flat plate collectors in Canadian climates and are the most effective solution for solar heating applications.
The TH Solar Company are world leaders in evacuated tube technology and has a dedicated R&D effort which is continually working to improve the quality and effectiveness of their products. Operating under stringent ISO9001 quality standards the SLU/1500 products have been certified to meet CSA standard F378 and the European Solar Keymark.
Link to ecoENERGY Canada

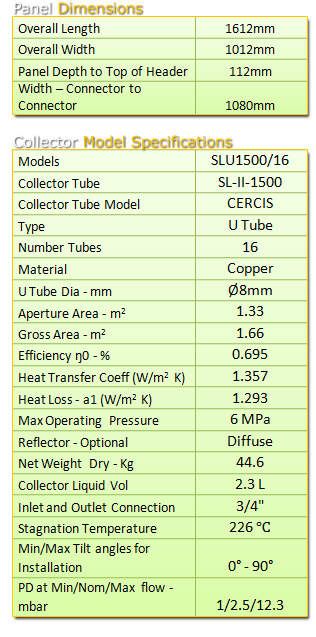

SLU1500/16 Collector
Key Features
The SLU collector provides a significant number of advantages to the installer and the end customer.
- Fully anodized aluminum extruded frame and header box
- All stainless steel and aluminum fasteners
- Full length aluminum diffuse plate reflector
- High temperature glass and polyurethane header insulation
- High strength borosilicate glass tubes
- UV stabilized silicone gaskets and Nylon 66 UV stable end caps
- Light weight for ease of installation and reduced roof loading
- All silver brazed copper connections for superior strength
- Up to 3-5 panels connected in series
- Easy replacement of broken tubes – no shutdown or loss of fluid
- Manufactured to ISO9001 and CSA F378 approved
- Full product support and spare tube inventory
- 5yr manufacturer warranty with 25 year life span
- Highest performance factor of collectors approved by ecoENERGY Canada
